Features:

• 8 outlets C13
• Power input 16Amp IEC C20 Port / Requiring supply cable
• PDU Power Measurement

Power Distribution
- Space saving 1U rack mount design with rear mounting
- IEC or NEMA outlet models
- 3 digit 7-segment front panel LED shows Current / IP Address
- Remote users can monitor outlet status via web pages on their browsers
- Safe shutdown support
- Separate power for the unit's own power and its power outlets. The user interface is still accessible even when an overload condition trips the devices' circuit breaker


Remote Access
- Remote power control via TCP/IP and a built in 10/100 Ethernet port
- Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping
- eco PDU Power Management software – eco Sensors
- Supports SNMP Manager V3


Operation
- Local and Remote power outlet control (On, Off, Power Cycle) by individual outlets
- Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
- Easy setup and operation via a browser-based user interface
- Multibrowser support (IE, Firefox, Chrome, Safari)
- RTC support to keep the timer running during times of no power.
- Supports up to 8 user and 1 administrator accounts


Management
- Power status measurement at the PDU or Outlet level
- LED indicators for current and IP address at the PDU device level
- Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the PDU level
- Current and voltage threshold setting
- Naming support for outlets
- User outlet access assignment on an outlet-by-outlet basis.
- Event logging and syslog support
- Upgradeable firmware
- Multilanguage support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian


Security
- Power status measurement at the PDU or Two-level password security
- Strong security features include password protection and advanced encryption technologies – 128 bit SSL
- Remote authentication support: RADIUS


eco Sensors Energy Management Software
- Automatic discovery of all PE devices within the same intranet
- Remote real-time power measurement and monitoring
- Remote real-time power outlet management*
- Remote real-time environment sensor monitoring
- Plotting/Monitoring of all PE devices
- Exceed threshold alert through SMTP and Syslog
- Power Analysis Report

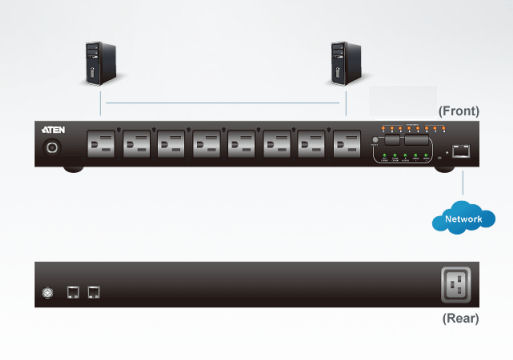

Aten PDU8G GENERAL RANGE TYPICAL SETUP. This picture may not be the actual model model different outlet connectors types available as per descriptions.


Specification:

Package Contents

1x PE6108 Power Distribution Unit
1x Power Cord
1x Rack Mount Kit
1x Software CD
1x User Instructions

Monitoring level - PDU


Function PE6108A PE6108B PE6108G
Power Outlets Direct 8
Connectors Power
Inlets 1 x IEC 320 C20
Power
Outlets
IEC NA 8 x IEC 320 C13 8 x IEC 320 C13
0ther models available with NEMA
Sensor 2 x RJ-11
LAN 1 x RJ-45 (F)
LEDs Outlet Status 8 (Orange)
Outlet / IP 1-digit 7-segment (Orange)
PDU Current / Outlet Current / IP 3 (Green)
Current / IP 3-digit 7-segment (Orange)
Power 1 (Blue)
10/100 Mbps 1 (Orange / Green)
Link 1 (Green)
Sensor 2 (Green)
Switches Reset 1 x Semi-recessed Pushbutton
Power 1 x Non-fuse Breaker
I/P Rating 100–120V~; 50/60Hz; 12A 100–240V~; 50/60Hz; 12A 100–240V~; 50/60Hz; 10A
Load Capacity 1440W 2880W 2400W
O/P Rating Per Port 100–120V~; 50/60Hz; 12A 100-240V; 50/60Hz, 12A 100-240V; 50/60Hz, 10A
Total 100–120V~; 50/60Hz; 12A 100-240V~; 50/60Hz, 12A 100-240V~; 50/60Hz, 10A
Environment Operating Temp. 0 - 50°C
Storage Temp. -20 - 60°C
Humidity 0-80% RH Non-condensing
Physical Properties Housing Metal
Weight 2.77 kg 2.82 kg 2.82 kg
Dimensions
( L x W x H ) 43.24 x 21.93 x 4.40 cm
